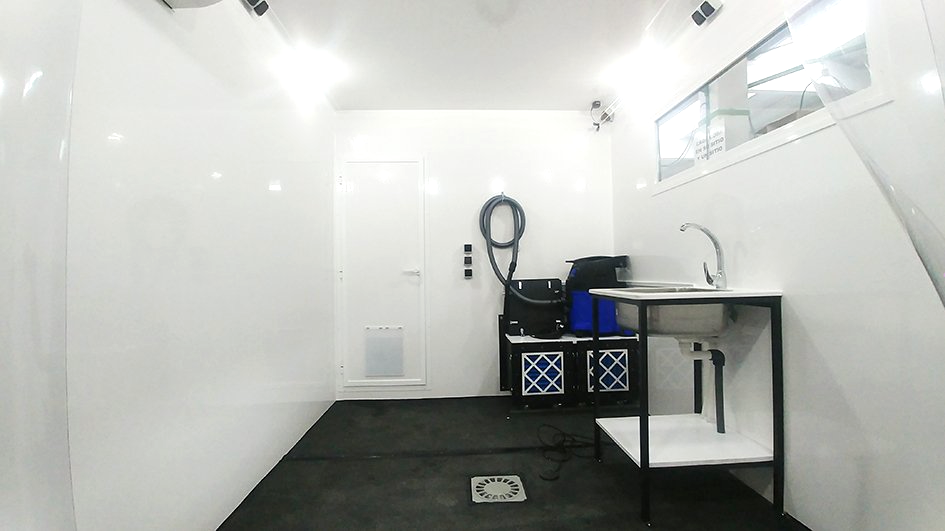

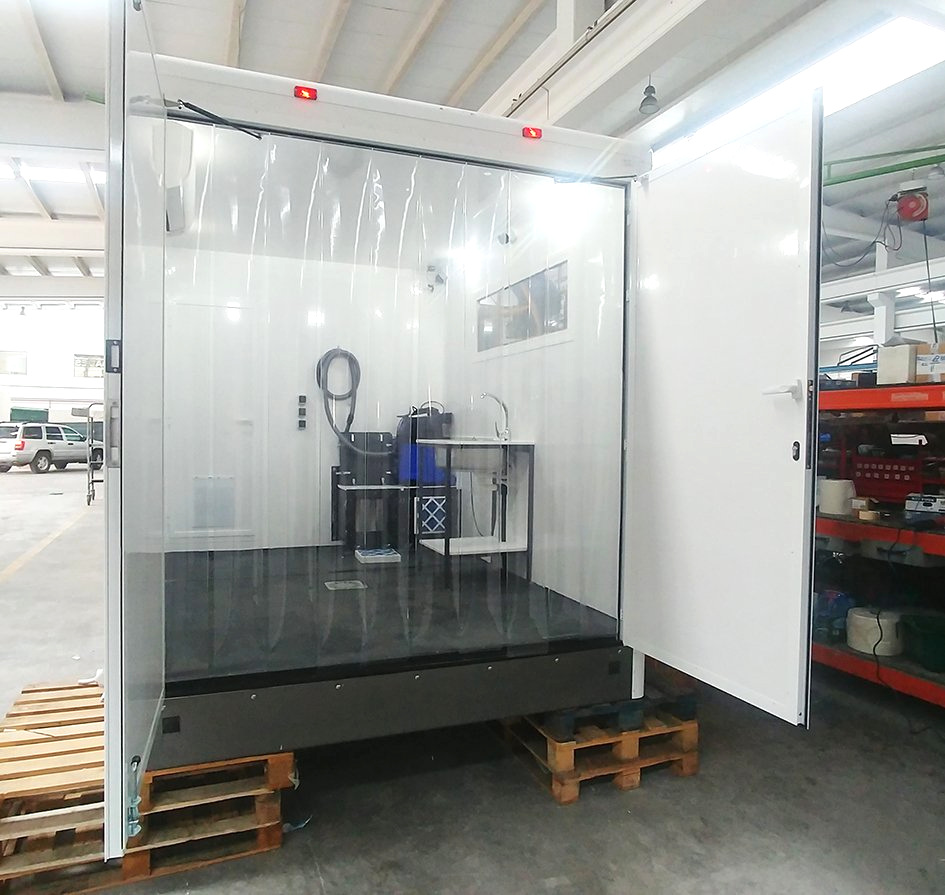

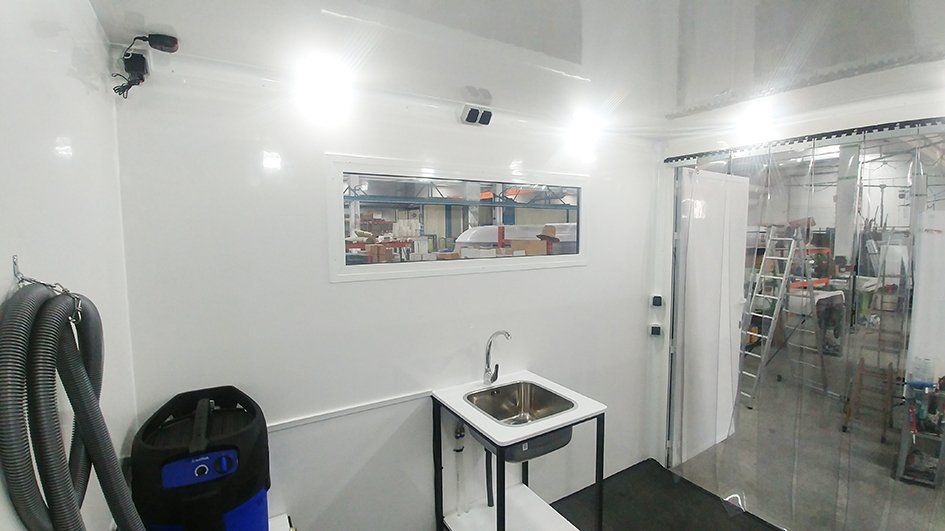

Decontamination workshop

The asbestos decontamination bungalow EVO not allowing the achievement of static confinement.

Decontamination unit suitable for personnel working on the dismantling of equipment containing asbestos, lead, chromium, carbon, nickel, etc.

Has a decontamination workshop and a decontamination tunnel (manufactured according to specifications ED 6244 of April 2020) for operators equipped with 2 showers supplied with hot water, a spacious transitional room for undressing and a room heated locker room with lockers.

THE permanent air filtering (H13 or H14) by depression is ensured by the innovative R system Control developed especially for EVO X38 decontamination units.

The showers and the workshop have a waste water filtering, which traps asbestos particles, before sending the water to the sewer system.

Adapted to the new requested arrangements, this model can integrate a certain number of functionalities and automation intended to reinforce the operator protection as:

A generator with automatic switchover in the event of a network outage, an emergency extractor with automatic switchover, a 200 l water reserve coupled with a high pressure pump.

The EVO as well as great resistance to shocks.

Technical characteristics :

Structure

• Hot-dip galvanized steel chassis, equipped with lifting points and 2 forklift pockets
• Passages for Manitou forks or other forklifts
• Entirely constructed of extruded aluminum profiles and 30 mm polyester sandwich panels or galvanized and lacquered steel sandwich panels. Polyester covered with a white gel coat which provides a smooth, porosity-free finish.
• Panels: assembled by aluminum profiles which ensure a self-supporting and solid structure. Resistant to bad weather and UV rays
• Empty weight: 2500 kg
• 4 leveling stands
• 1 material SAS 3 compartments connected to the entrance to the workshop







Air flow assessment certified according to the decree of April 8, 2013 and ED6244 2020




Interior configuration




• 200 l polyester water reserve

• High pressure pump with pressure switch for use with water tank

• Self-illuminating guidance in the event of a power outage

• Ground water recovery system connected to filtration

• Stainless steel sink with mixer tap

• Rot-proof wooden floor covered with 10 mm rubber

  in the workshop to cushion falls of heavy objects

• Air conditioning in the workshop (hot/cold): Daikin AXB 25 or equivalent

• 1 rest bench with integrated water reserve for network water cutoff safety
• 1 cabinet with Pramca generator, Honda S8000 engine with automatic start in the event of a network outage (option)
• 12V white LED low voltage lighting
• 2 separate showers of 1 mx 0.80 m. 1 filtration line per shower
• 3 double (twin) aluminum cabinets with hooks and 220 V sockets
• 150 l electric water heater with electronic control or gas-tight water heater
• 3 double filtration blocks for water treatment
• 3 self-priming membrane pumps (17 l/min) connected to double filtration (25 µm 5 µm)
• 1 500 W heater in the technical room
• NFC 15100 electrical panel with 30 MA protection
• Plumbing in PER
• Ventilation grilles to ensure perfect air circulation
• Extractor equipped with a HEPA H13 filter for normal operation of the unit (20 renewals / hour in the workshop)
• Extractor equipped with a HEPA H13 filter for emergency and regulation mode in the event of a drop in depression
• 1 2-channel vacuum controller with printer audible alarm in the event of a drop in vacuum in the workshop
• 1 EFM for automatic variation of the extractor
• BEA “R Control” system for management
• air circulation
• ATTIX 30-0H 30 l vacuum cleaner, class H
• External box for the GE with anti-theft system (option)

•


•


The strong points :

• The workshop allows you to control the maintenance of your equipment and reduce its costs
• The workshop is easily transportable on a platform or in a 20" container
• The workshop allows you to decontaminate industrial parts (valves, flanges, pipes, etc.) on your customer's site without installing static containment.
• Possibility of total autonomy (in water and electricity). Gas version available
• Effective insulation (hot and cold), reversible air conditioning in the workshop allows you to work comfortably

The EVO
