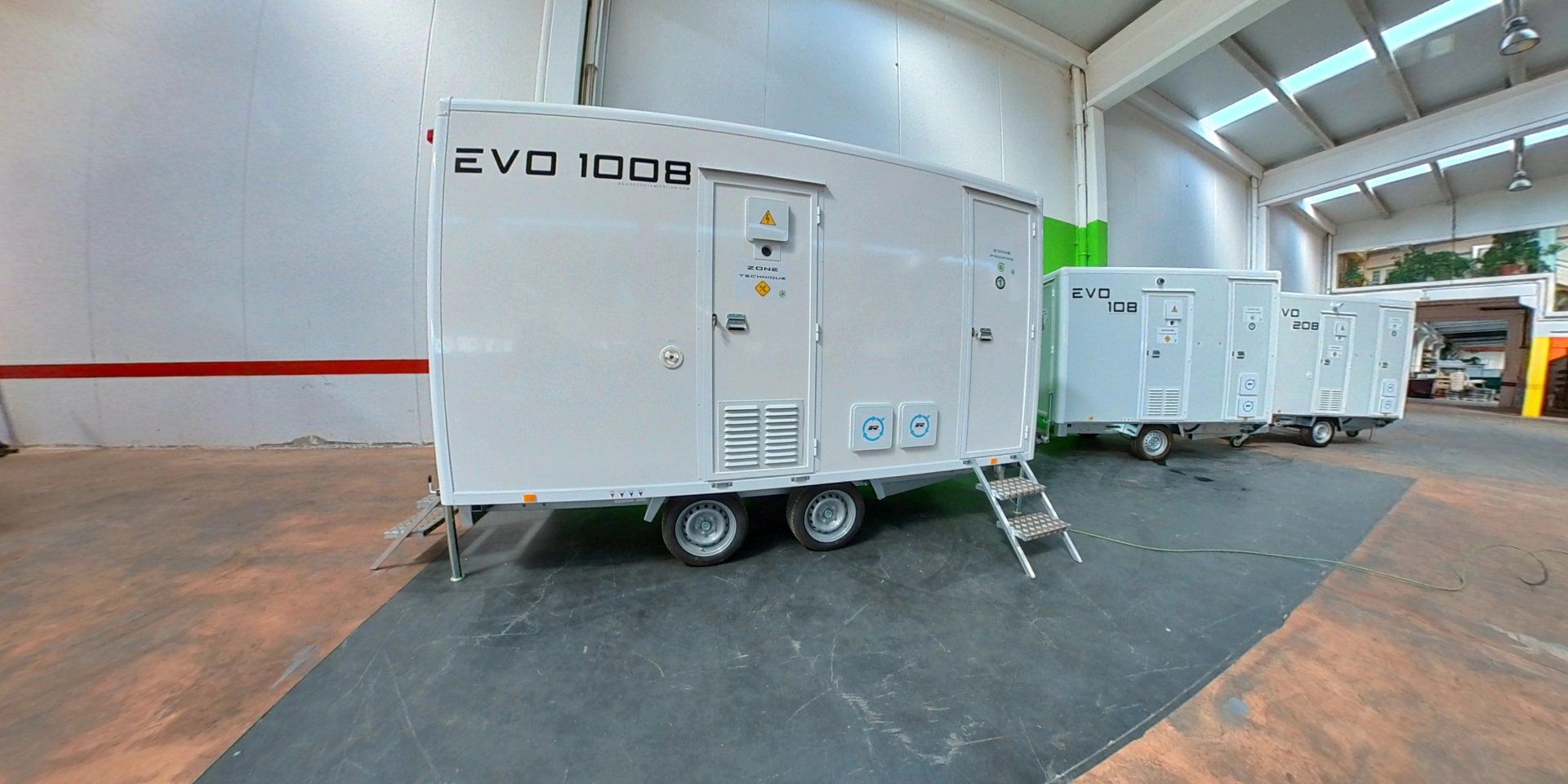

This high-end mobile decontamination unit is adapted to the new provisions requested in the specifications published by the INRS ED 6244 of 2020.

Technical characteristics :

Structure

• Entirely constructed of extruded aluminum profiles and 30 mm polyester sandwich panels (polyester foam polyester)
• Galvanized chassis with 2 axles of 1300 kg (ALKO) and inertia brakes, with anti-yaw stabilizer.
• 5 wheels of 195/50 - R 13 (IC 900 kg)
• Recessed AR pilots so as not to risk breaking them during maneuvers
• 4 stabilization or elevation crutches (optional)
• 1 handrail on the access doors 1 extractable step per access
• Reinforced drawbar with a capacity of 2700 kg with reinforced jockey wheel, anti-yaw coupling head
• Weight: 1600 kg in stand-alone version
• Approval (*): from 1500 kg to 2500 kg







  Air flow assessment certified according to the decree of April 8, 2013 and ED6244 2020




  Interior configuration




  • 200 l polyester water reserve

  • 0.85hp high pressure pump with pressure switch, allowing an external tank to be connected to the UMD

  • Opening and closing the automatic extractor cover

  • Waste evacuation hatch with bag or longopac system

  • Filter evacuation hatch from the hygiene shower

  • Timer for extractor cut-off at end of shift

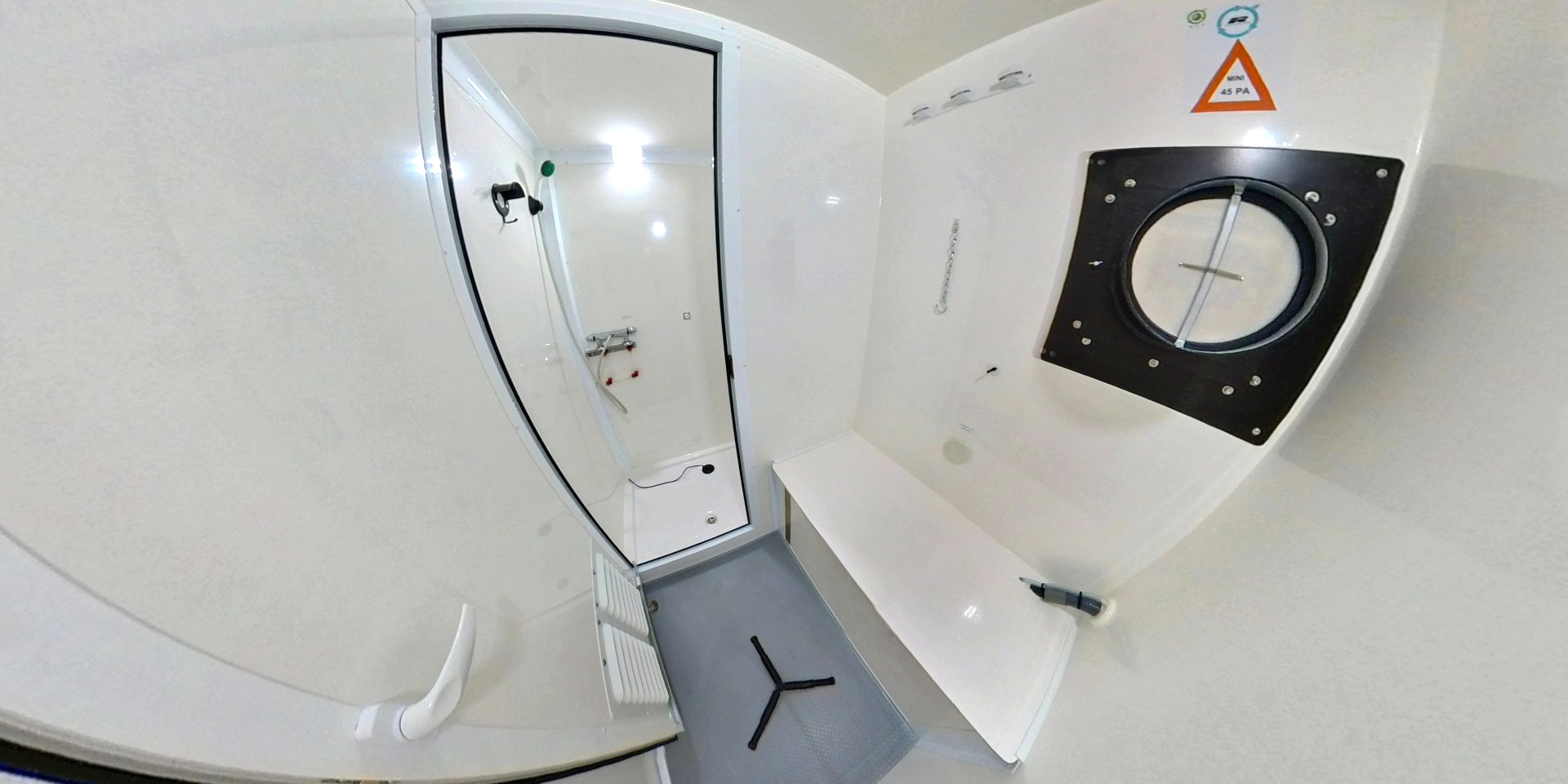

  • Rest bench in the dirty airlock and the clean airlock

  • Hooks in all airlocks

  • Rot-proof wooden floor covered with resin on both sides

  • 12V white LED low voltage lighting

  • 2 separate showers of 1 mx 0.80 m. 1 filtration line per shower

  • 3 double (twin) aluminum cabinets with hooks and 220 V sockets

  • Waterproof gas or electric water heater 150 l

  • 2 double filtration blocks for draining water from showers

  • Polyester sink with hot and cold water, soap dispensers

  • 2 diaphragm pumps with pneumatic control from the showers for waste water evacuation

  • Fan heater (split) 2000 W

  • NFC 15-100 electrical panel with 30 MA protection

  • Plumbing in PER

  • Ventilation grilles to ensure perfect air circulation

  • 600 m3/h extractor equipped with a HEPA H13 filter

  • BEA “R Control” system for managing air circulation

  • ATTIX 30-0H 30 l vacuum cleaner, class H

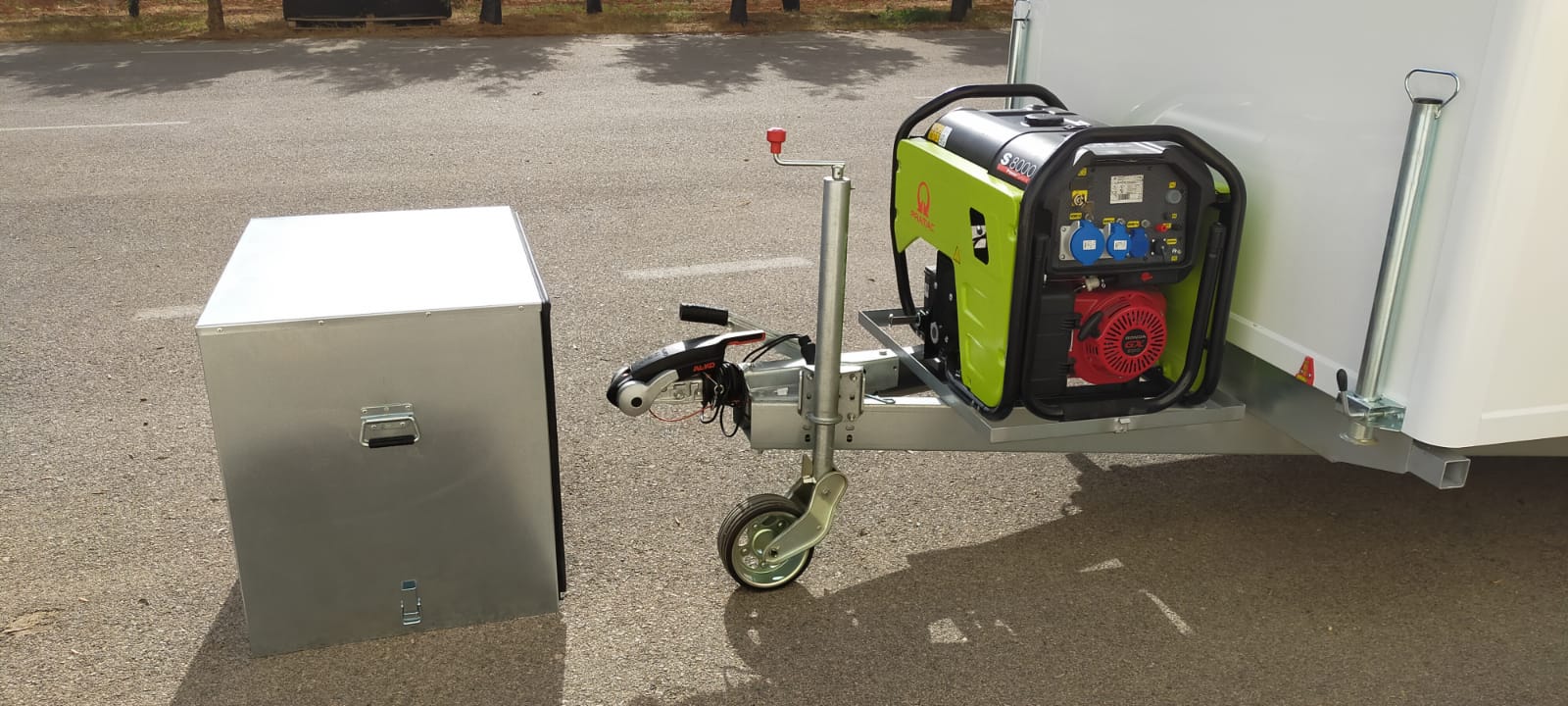

  • 6.4 kva gasoline generator, electric start, Honda engine

  • External box for the GE with anti-theft system




    (*)

    Approval EN-12642 Code XL 2012

    for this body model, a standard that determines compliance with the minimum criteria established for standard (L code) and reinforced (XL code) vehicle bodies. This approval is becoming ever more demanding and requested in the sector. This is a regulation that allows you to travel, load and unload safely on the roads of Europe. Reinforced bodies must have a series of characteristics depending on the strength of the structure and the fixing of the load in the vehicles. From this standard, the layout of the bodywork as well as the materials with which it is manufactured must resist load movements while ensuring the stability of the vehicle.




The strong points :

• Reasonable GVW of 1600 kg all loads included

• Can be towed with a B96 license for the model without generator (1500 kg) if the total weight with the vehicle does not exceed 4250 kg.
• Manufactured and equipped according to INRS ED 6244 2020 specifications
• Spacious, its 2 axles and its AKS stabilizer offer incomparable driving comfort
• The compartments are spacious
• Very low electricity consumption: it consumes only 25 A on 230 V
• Possibility of total autonomy (in water and electricity). Gas version available
• Effective insulation (hot and cold). Its bodywork does not dent
• Perfect for large teams or businesses looking for a high-end version of UMD
