This site living quarters meets the minimum requirements issued by the CARSAT.

Intended for personnel working on asbestos removal sites, lead treatment or any other building trade.

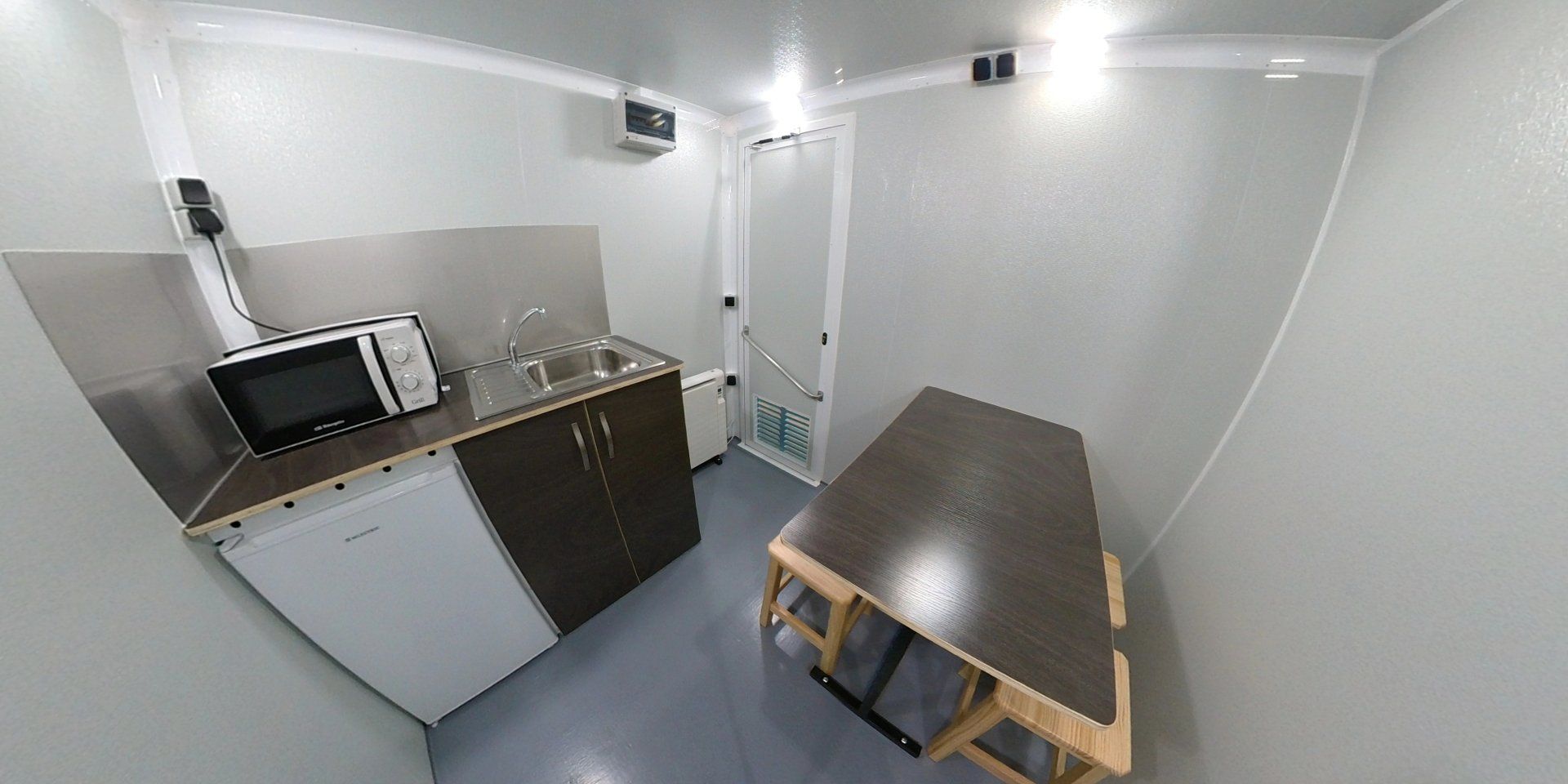

It has a rest area equipped with a fixed table and 4 wooden stools, a kitchen worktop with a stainless steel sink coupled with a foot pump and a 100 l water tank, 1 microwave oven and 1 refrigerator.

All furniture is custom-made by a carpenter using HPL laminated marine plywood, a rot-proof wood with a virtually scratch-proof coating.

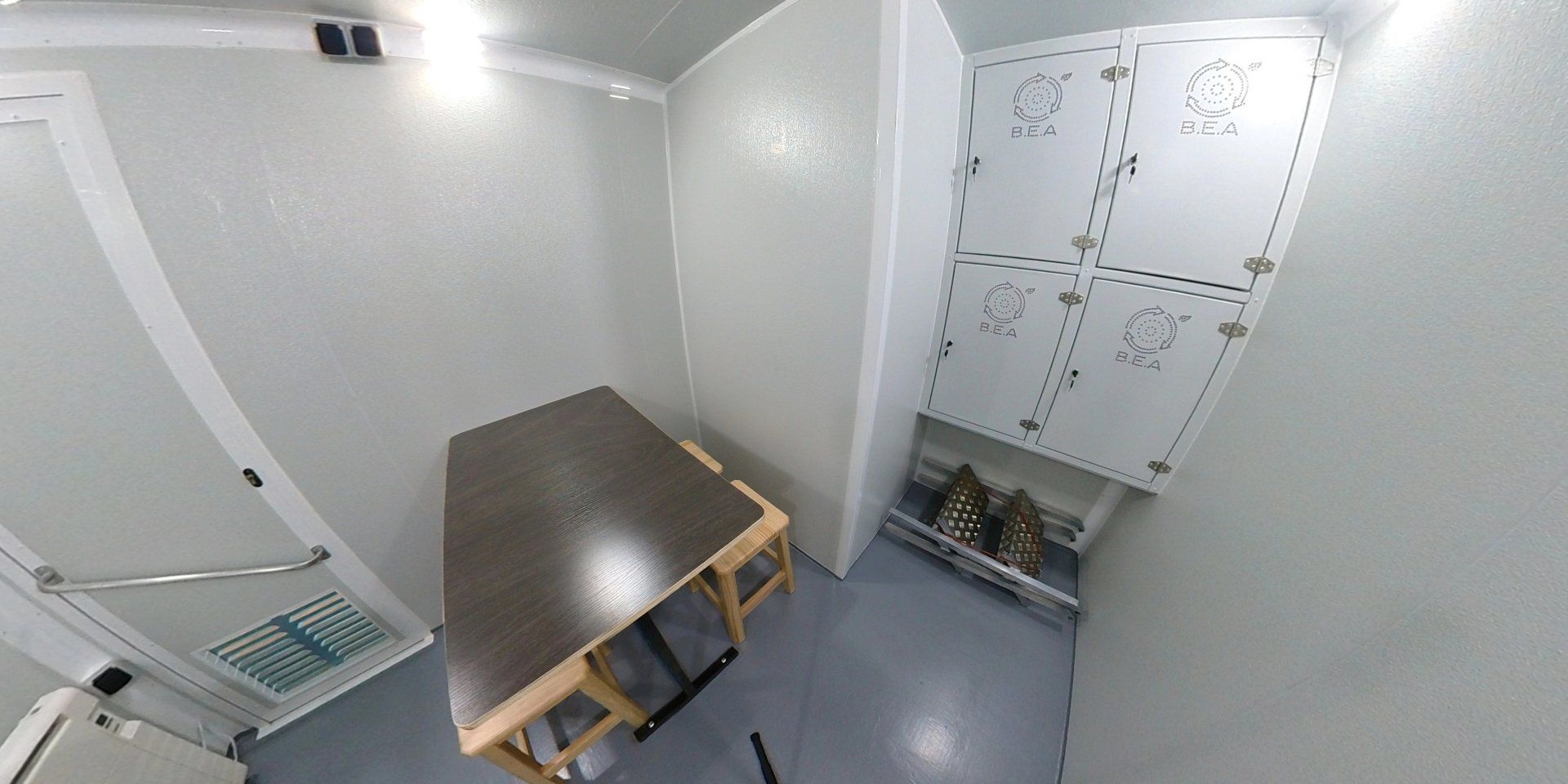

The premises are equipped with 4 ventilated metal lockers with key locks as well as 220v sockets for charging mobile devices.

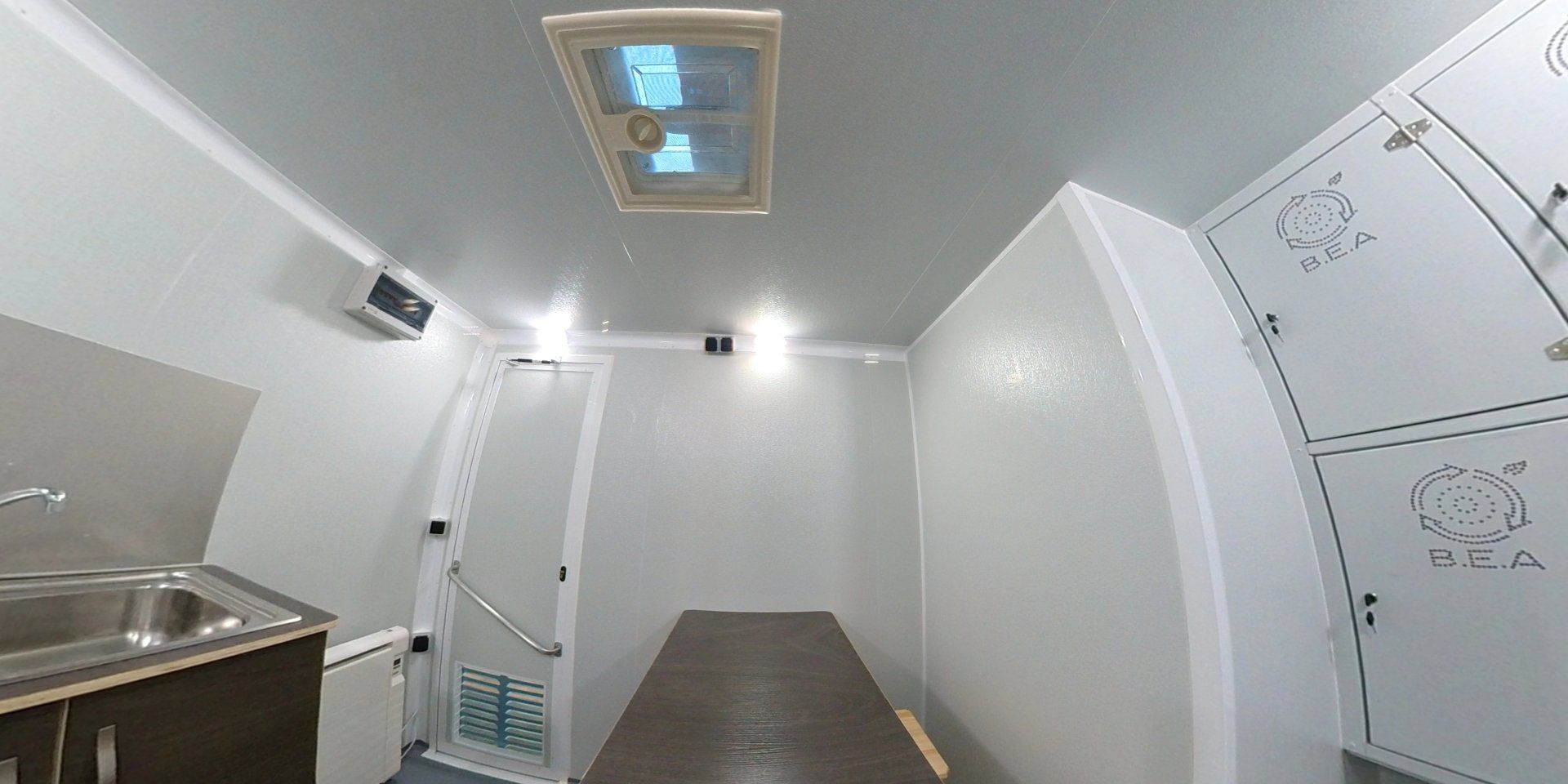

The ventilation of the rest area is achieved through a large ventilation grille on the entrance door as well as a skylight with mosquito net positioned on the ceiling, thus ensuring good air circulation.

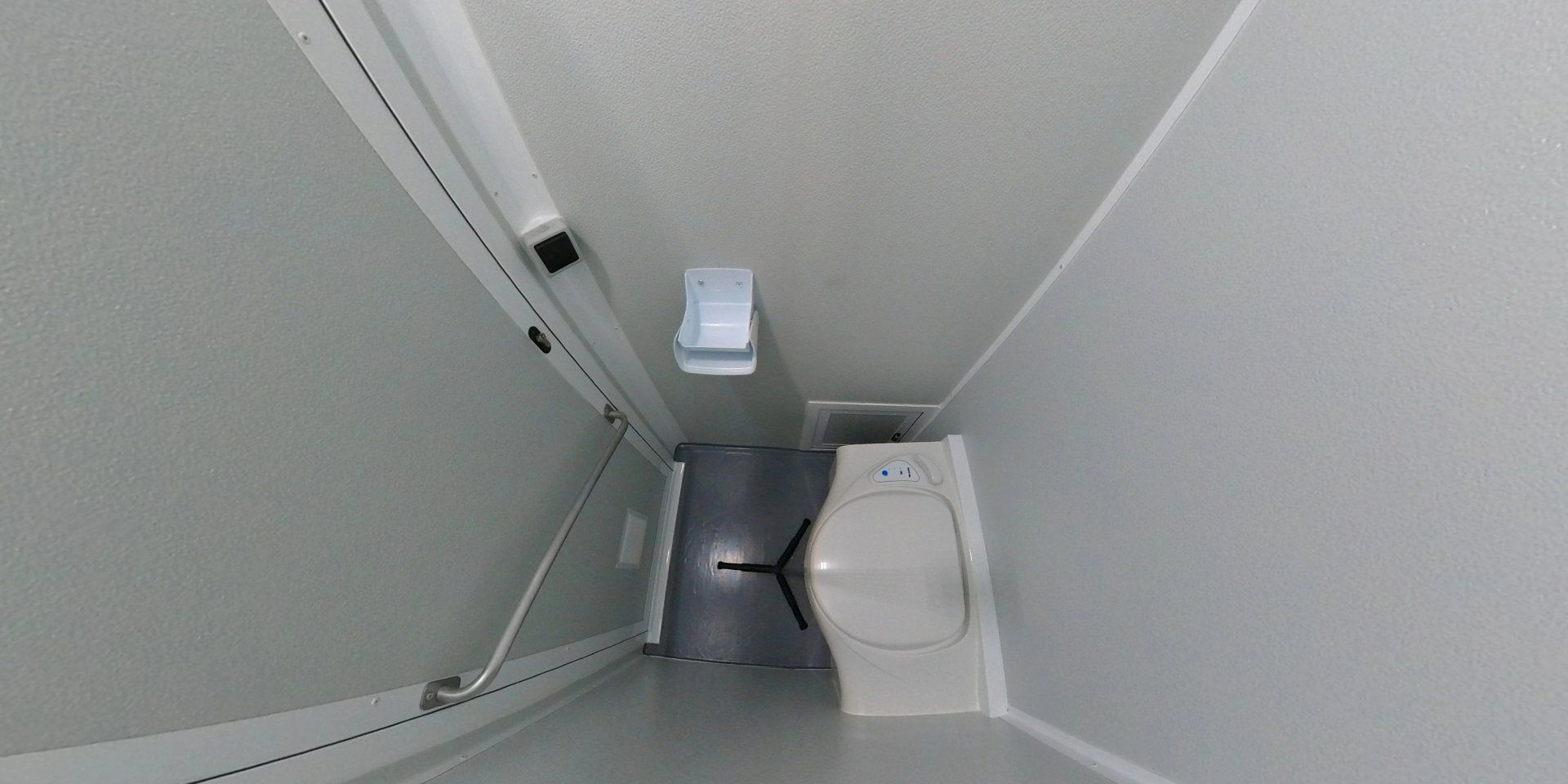

A room with access from the outside is equipped with a chemical toilet.

The toilet can be connected to the water supply; it is equipped with a cassette that can be removed from the rear of the unit, allowing the contents to be discharged into toilets connected to the sewer system.

The room is perfectly ventilated thanks to the ventilation grille installed on the door and the skylight in the roof.

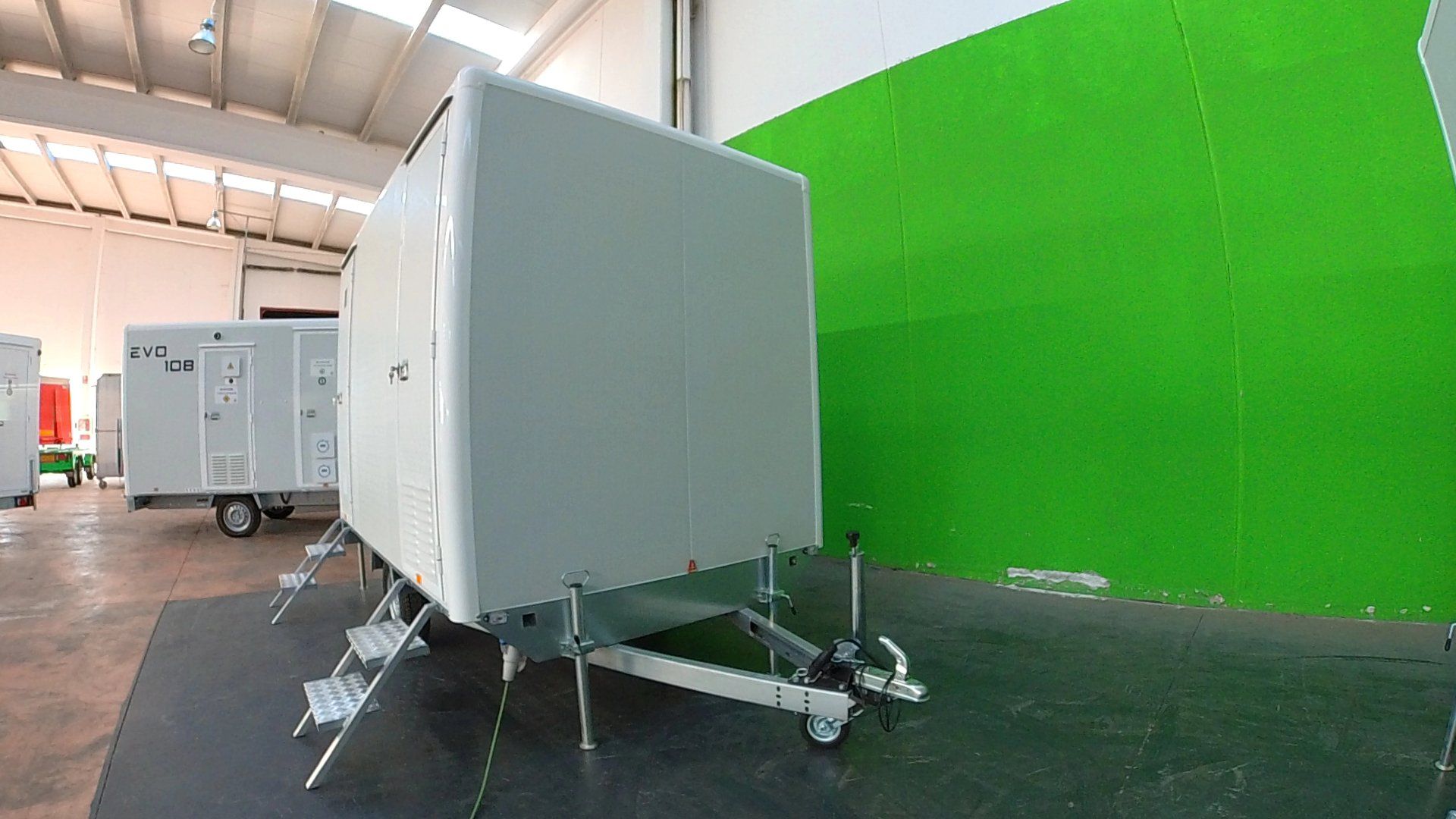

The UMR EVO BASE (3.15 m x 2 m interior / 4.5 m x 2 m exterior) is entirely constructed of extruded aluminum profiles and 30 mm sandwich panels (galvanized steel foam galvanized steel) which ensures good insulation against cold and heat.

Technical specifications:

Structure

• Constructed entirely from extruded aluminum profiles and 30 mm sandwich panels (galvanized steel foam galvanized steel)
• Galvanized chassis with 1 axle of 1300 kg (ALKO)
• 3 wheels of 175/70/R13 (IC 560 kg)
• The AR pilots are recessed to prevent breakage during maneuvers.
• 4 stabilizing crutches
• 1 handrail on the access doors 1 pull-out step per access
• Timon with jockey wheel
• Weight: 750 kg.

Base camp equipment:

• 1 fixed table in HPL marine plywood for 4 people
• 4 wooden stools (natural pine)
• 1 HPL plywood kitchen worktop stainless steel backsplash
• 1 stainless steel sink with tap coupled to a marine foot pump and a 100l water tank
• 1 microwave oven
• 1 refrigerator
• 4 metal lockers with key
• 12V LED lighting
• Electrical panel with 30 mA residual current protection
• 1000W radiant heater
• Low and high ventilation with a rooflight equipped with a mosquito net
• 220v sockets for charging mobile devices
• 1 chemical toilet with removable cassette, toilet paper holder, low and high ventilation with ceiling skylight
• 1 spare wheel
• 4 stabilizing crutches
• Integrated level indicators on the bodywork
• 2 removable access steps

Key features:

• An oversized mechanism to preserve your UMR
• ALKO axle with a load capacity of 1,300 kg
• reinforced galvanized chassis
• load capacity of 550 kg per wheel
• AL-KO tiller with
• Compact and lightweight
• Its maximum authorized mass (MAM) of 750 kg allows it to be towed with a category B driving licence.
