100% AUTONOME - 1000 KG
The most compact and lightest autonomous mobile system in its class
This mobile decontamination unit is adapted to the new provisions requested in the specifications published by the INRS ED 6244 of 2020.
Intended for staff working in
disassembly
materials containing asbestos or lead.
Has a decontamination tunnel
5 compartments
equipped with
2 showers

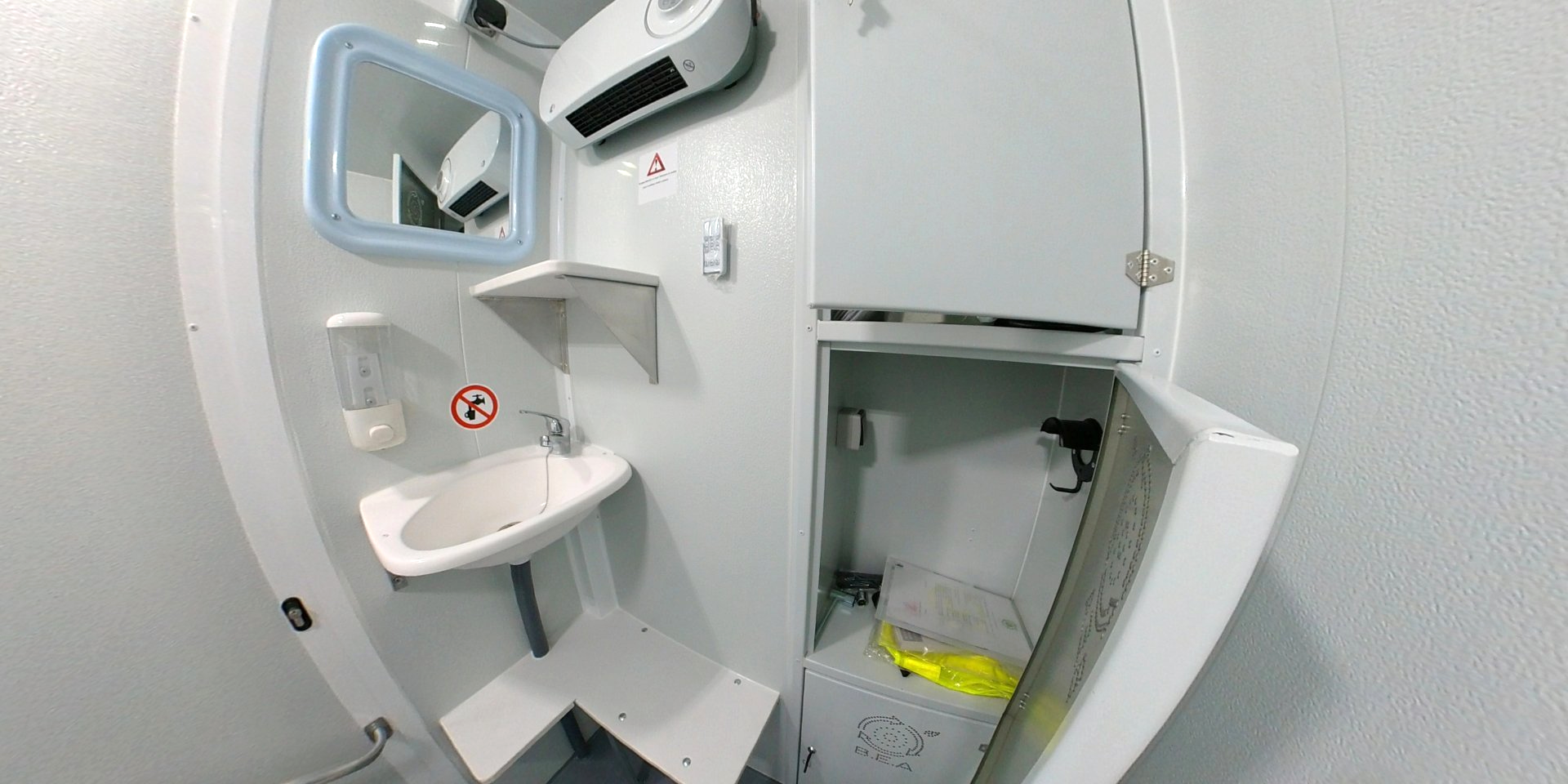

supplied with hot water, a waiting room, a spacious transitional room for undressing, a heated changing room with lockers and an independent technical room.
Permanent filtering of the air by vacuum is ensured by the innovative
R system Control
And
R Cleaner
developed by our team for the EVO range UMDs.
The showers have a
waste water filtering
, which traps asbestos particles, before sending the water to the sewer system.

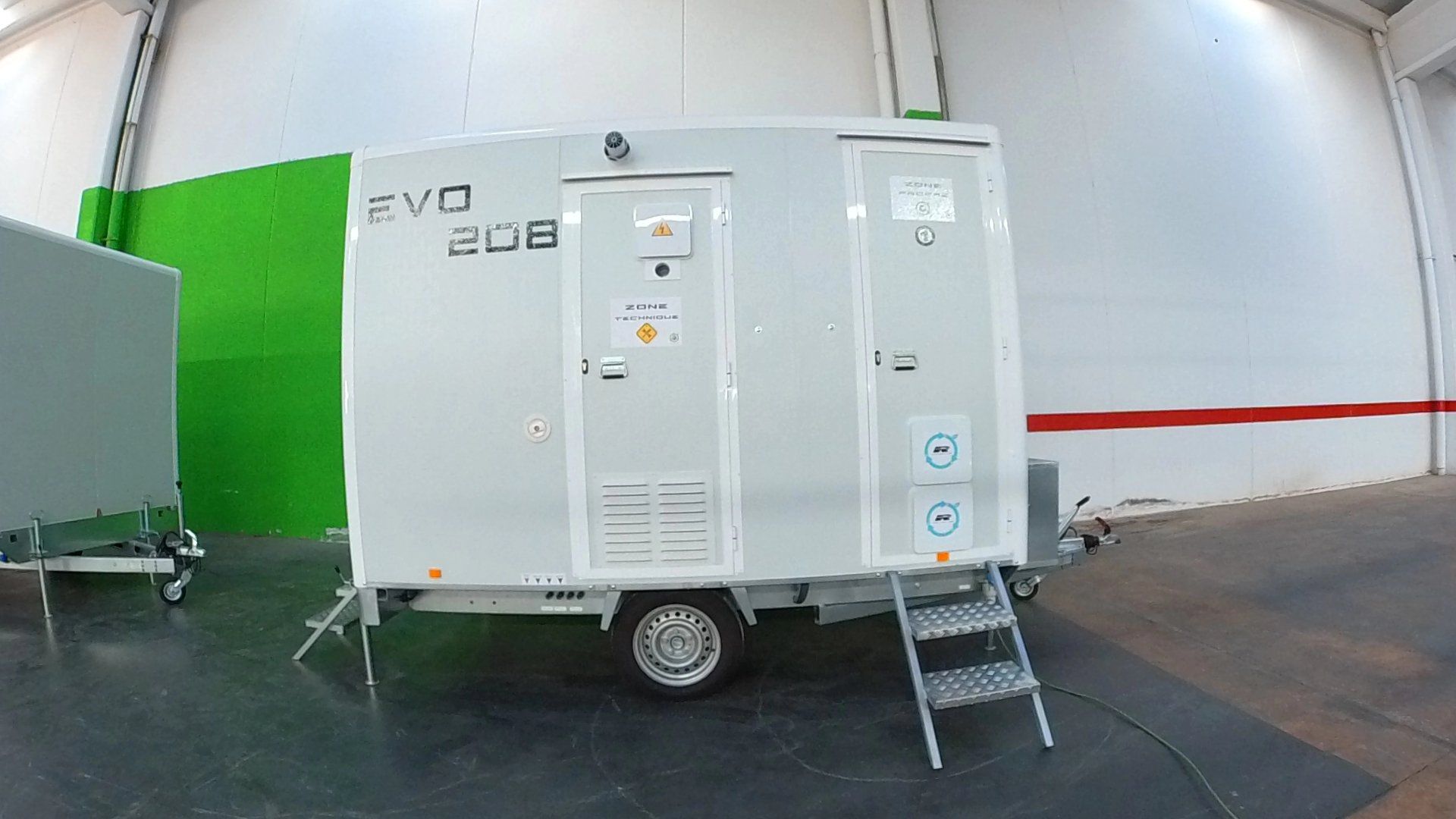

The UMD EVO 208 (3.15 mx 2 m interior / 4.5 mx 2 m exterior) is entirely built in
30 mm sandwich (galvanized steel foam galvanized steel) which ensures a
good insulation
cold and hot.
Features:
Structure
- Entirely constructed of extruded aluminum profiles and 30 mm sandwich panels (galvanized steel foam galvanized steel)
- Galvanized chassis with 1 axle of 1300 kg (ALKO) and inertia brakes
- 3 wheels of 195/50 R 13 (IC 900 kg)
- Recessed AR pilots so as not to risk breaking them during maneuvers
- 4 stabilizing crutches
- 1 handrail on the access doors 1 extractable step per access
- Honda engine gasoline generator, 4.2 KVA
- Reinforced 1600 kg drawbar with jockey wheel
- Weight: 1000kg
Air flow assessment certified according to the decree of April 8, 2013 and ED6244 2020
Interior configuration
- Opening and closing the automatic extractor cover
- Waste evacuation hatch with bag or longopac system
- Filter evacuation hatch from the hygiene shower
- Timer for extractor cut-off at end of shift
- Rest bench in the dirty airlock and the clean airlock
- Hooks in all airlocks
- Rot-proof wooden floor (marine plywood) covered with epoxy paint.
- 12V white LED low voltage lighting
- 2 separate showers of 1 mx 0.80 m
- 3 cupboards with hooks and 220 V sockets
- Integrated water reserve of 100 l
- Waterproof gas water heater with suction cup, unlimited hot water production
- 2 double filtration blocks for draining water from showers
- Polyester sink with hot and cold water, soap dispensers
- 2 diaphragm pumps with pneumatic control from the showers for waste water evacuation
- Fan heater (split) 2000 W
- NFC 15-100 electrical panel with 30 MA protection
- Plumbing in PER
- Ventilation grilles to ensure perfect air circulation
- 600 m3/h extractor equipped with a HEPA H13 filter
- BEA “R Control” system for managing air circulation
- ATTIX 30-0H 30 l vacuum cleaner, class H
The strong points :
- An oversized mechanism to preserve your UMD:
- ALKO axle with a load capacity of 1,300 kg
- reinforced galvanized frame
- low wheels
- load capacity of 900 kg per wheel
- braked drawbar and AL-KO coupling head with a towing capacity of 1600 kg
- Compact and 100% autonomous, it is widely used by teams of roofers, excavators, industrial maintenance and public works, without having the disadvantage of a large decontamination trailer for traveling in an urban or industrial environment.
- Its GVW of 1000 kg allows traction with license B if the towing vehicle does not exceed a GVW of 2500 kg
- Its GVWR of 1000 kg allows traction with the B96 license if the vehicle does not exceed a GVWR of 3250 kg
